dtf powder shaking and film curing machine

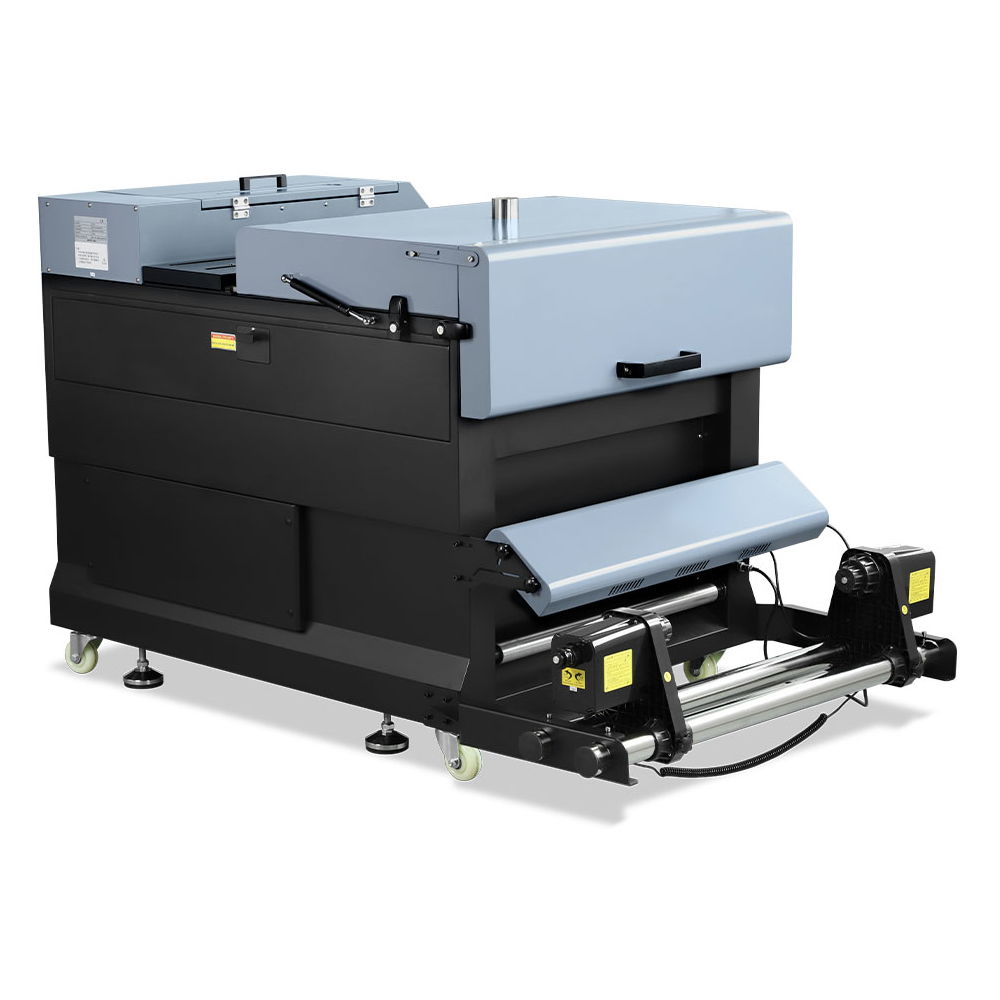

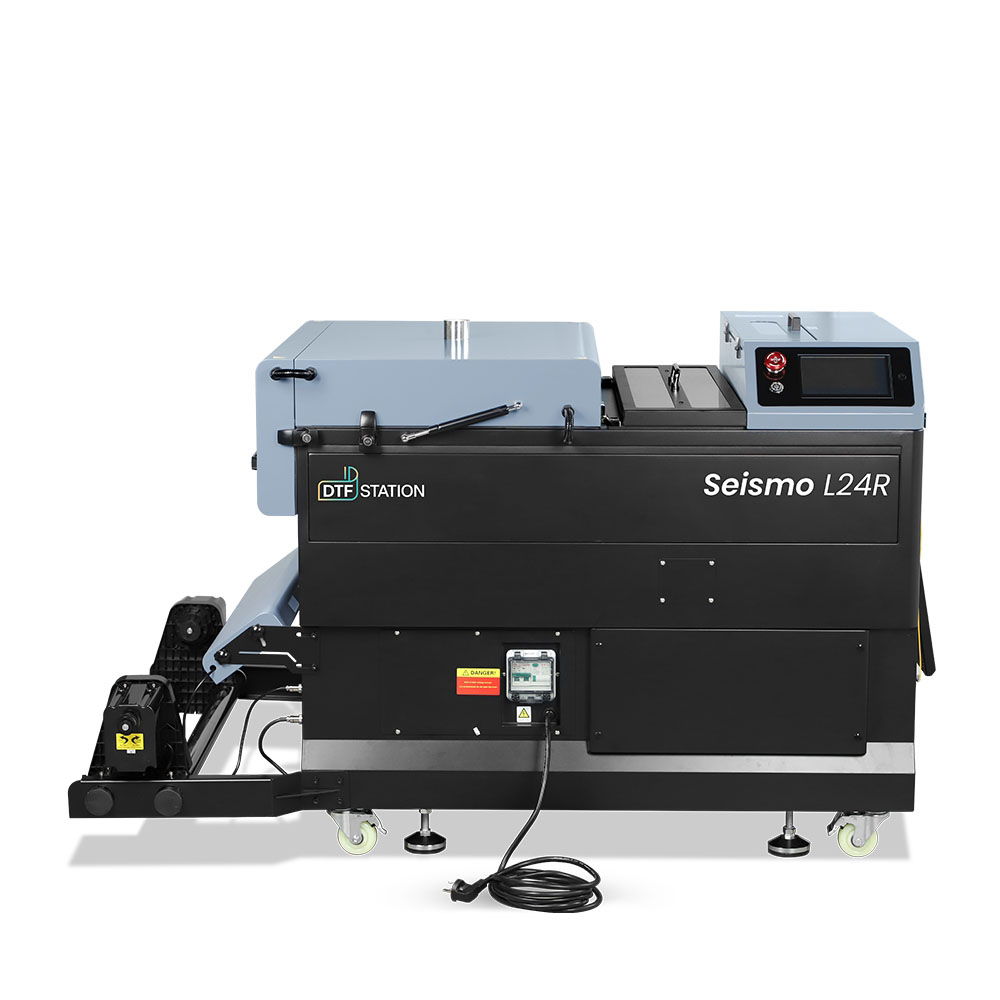

Seismo L24R Powder Shaker

Sensor control system to make the shaker working stable at a much more lower labor cost.
Suction system to save your film for each new roll of film set up while make the new roll feeding process much more easier.

SKU: 220V: D.02.02.0017 Categories: DTF, 60 CM DTF Solution

DTF Powder Shaker and Dryer with Auto-recirculating System – 60cm Film Width

Seisimo L24R is developed for the business runners who is struggling to get their workers to be trained better and more easier way .
The shaker is controlled by a intellegent system with sensors ,operators just need to make sure to recycle the ink and powder at every 4 hours during running the system.

Benefits:
Free your worker while get your worker better edcuated at a much more easier way

Compatible with:
1. Prestige XL2
2. Prisma Auto Heat Press
3. Maxima Semi-Auto Dual Heat Pres
4. All the DTF printer which is with Epson I3200 head or the head which is with similar printing speed

SPECIFICATION

Model Name	Seismo L24R
Max Film Width	60cm (24″)
Powder Recycling	Every 4 to 5 hours manually (keep printing)
Power Requirements	5200W, 220V Only
Maximum amount of powder	4 kg (8.8 lb)
Powder Filling Box	YES
Powder Collection Drawer	NO
Product Weight	190 kg (418.9 lb)
Packaging Weight	240 kg (529.1 lb)
Machine Dimensions	162cm×91.2cm×99.2cm (63.8″W×35.9″D×39.1″H)
Packaging Dimensions	142cm×112cm×113.6cm (55.9″W×44.1″D×44.7″H)
Warranty	One year warranty
Structure	1. Self-developed control system with DTF Station logo and a sensor system to keep the shaker running at a lower power consumption while maintaining stable curving quality. 2. Self-developed auto-recirculating system. 3. Conveyor and suction system for easier initial film feeding.
Reason to Develop This Model	The Seismo L24R was developed to enable fewer people to run more machines. The goal was to create an auto-recirculation system that was not only easy to use but also stable and easy to maintain. This model is user-friendly and requires minimal after-sales service, making it an ideal choice for dealers.
Daily Maintenance	The powder needs to be reloaded every 4 to 5 hours (based on 2 Epson I3200 heads keep printing). The machine is easy to clean before finishing daily work.
Suitable Users	DTF printing users with a printer width less than 60cm

Comparison Table

	MIRO 24	Seismo L24R
Max Film Width (the widest film that can go into the product)	24 in.(60cm)	24 in.(60cm)
Max. amount of powder applied at one time	2.2 lbs（1kg）	4.4 lbs (2 kg)
Powder Filling Box	No	Yes
Powder Collection Drawer	Yes	Yes
Powder Filling Frequency	Every 1 Hour	Every 2-3 Hours
Built-In Purifier	Yes	No
Product Dimensions (DxWxH) (size of the product)	59.55″ x 30.16″ x 22.38″ (151.2×76.6×56.9cm)	63.78″ x 35.91″ x 39.1″ 16291.299.2cm
Packaging Dimensions (DxWxH) (size of the package the product ships in)	37.01″ x 41.34″ x 39.37″ (94 x 105 x 100cm)	55.9″ x 45.28″ x 44.49″ 142115113cm
Power Requirements	110V/1.7KW/15.5A 220V/1.7KW/7.7A	220V/3.0KW/13.64A
