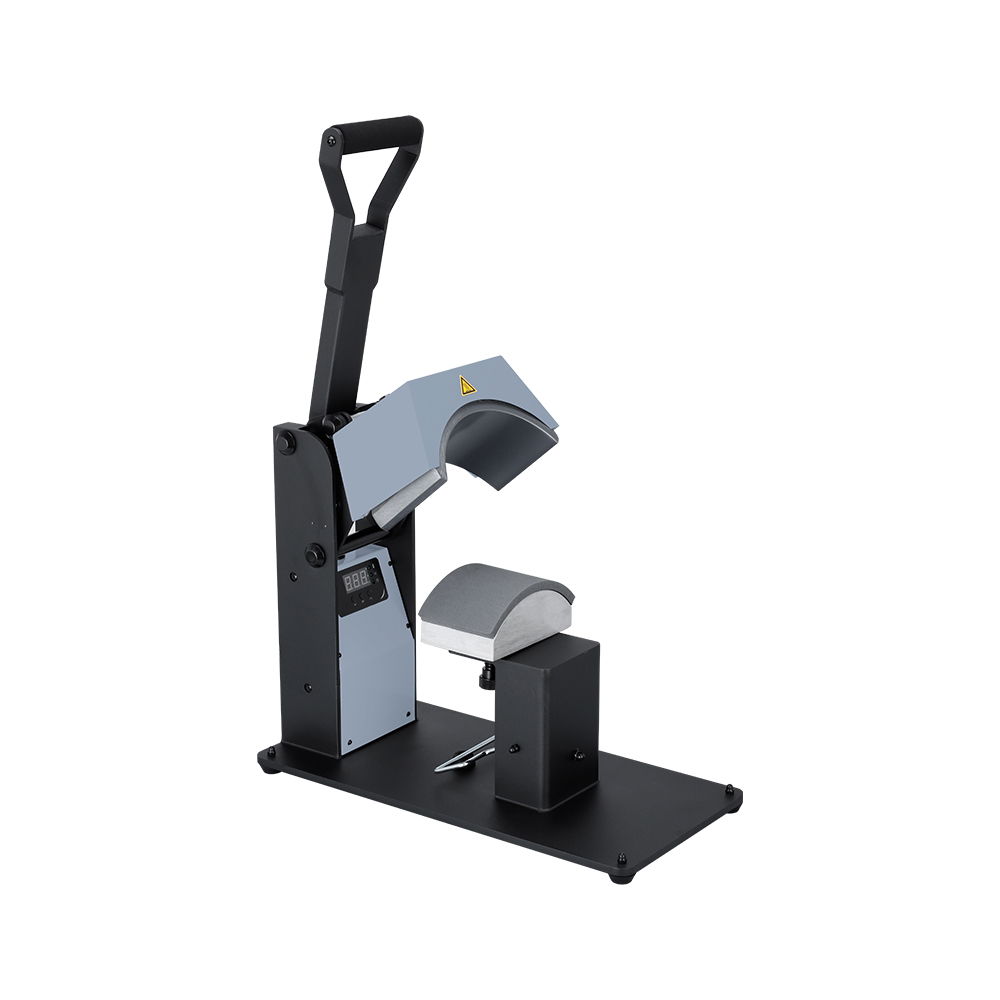

Galaxy Cap Press GS-501

  • Curved platens
  • Over The Center Pressure Distribution
  • Solid Welded Structure
  • lnterchangeable Platens

Find a Dealer in  Australia Chile  Poland  United States  The UK  Costa Rica  Spain  Sweden  Hungary  Portugal  More

SKU: 2300018 Categories: , Tag:

Galaxy Cap Press GS-501 digital cap press is offered with one size heat platen and 5 different sizes lower platen.  All platens are perfectly molded to mirror a hat’s curves and are designed to apply for heat transfers onto cap brims and bills. GS-501 is also useful for printing logos and back-neck labels onto flat garments. The portable and compact design makes this heat press perfect for use at home or retail shops. Make A Fashionable And Unique Cap.

Curved Platens

Perfectly molded to mirror the curves of a hat and are designed to apply heat transfers on to cap brims and bills.

Cap Heat Press

Interchangeable Platens

Offered with 5 different sizes lower platens

Interchangeable Lower Platen

Solid Welded Structure

Offers the machine with a strong and stable structure

3 8

Specification

ModelGS-501
Heater Size:
(Standard lower cap platen comes in the package:3.5″*6.5″(150*89*60mm )
3.5″*6.5″(150*89*60mm)– Included
3″*5.75″(150*77*60mm)– optional
2.75″*6.5″(148*76*61mm)– optional
4″*6.5″(150*101*60mm)– optional
4″*8″(170*101*65mm) –  optional
Power(120volt)500W/4.5Amps
Power(240volt)500W/2.3Amps
Temperature RangeMax.221℃/430℉
Heating Up Time180℃/15minutes
Time Range0~999S
Customized ColorAvailable
Customized BrandAvailable

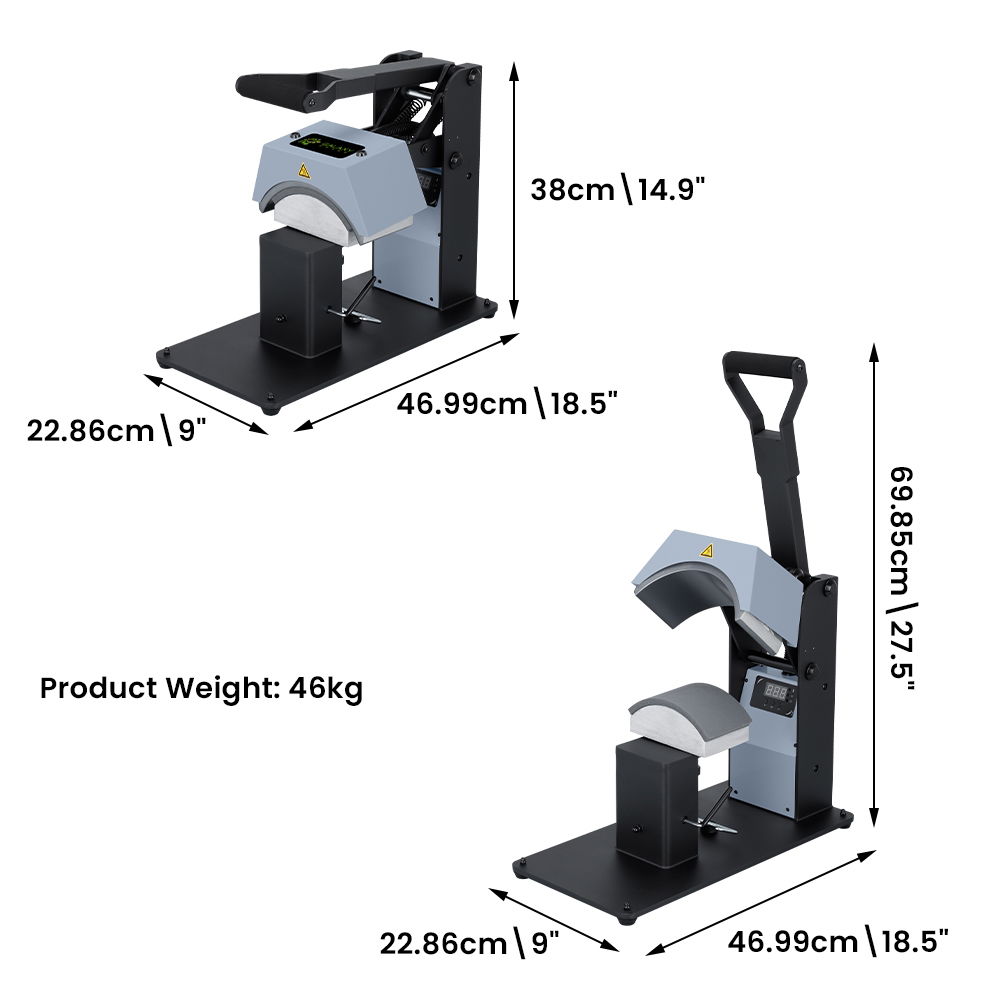

Machine Size(While Open)47*23*68.5cm
Packing Size56*31*46cm
Packing Weight18kg
CertificateFCC, CE
Warranty3 years on heat platen, 1 year on parts

Video

NEPTUNE CAP PRESS GS-501

GS-501 digital cap press is offered with one size heat platen and 5 different sizes lower platen. All platens are perfectly molded to mirror a hat’s curves and are designed to apply for heat transfers onto cap brims and bills. GS-501 is also useful for printing logos and back-neck labels onto flat garments. The portable and compact design makes this heat press perfect for use at home or retail shops.
