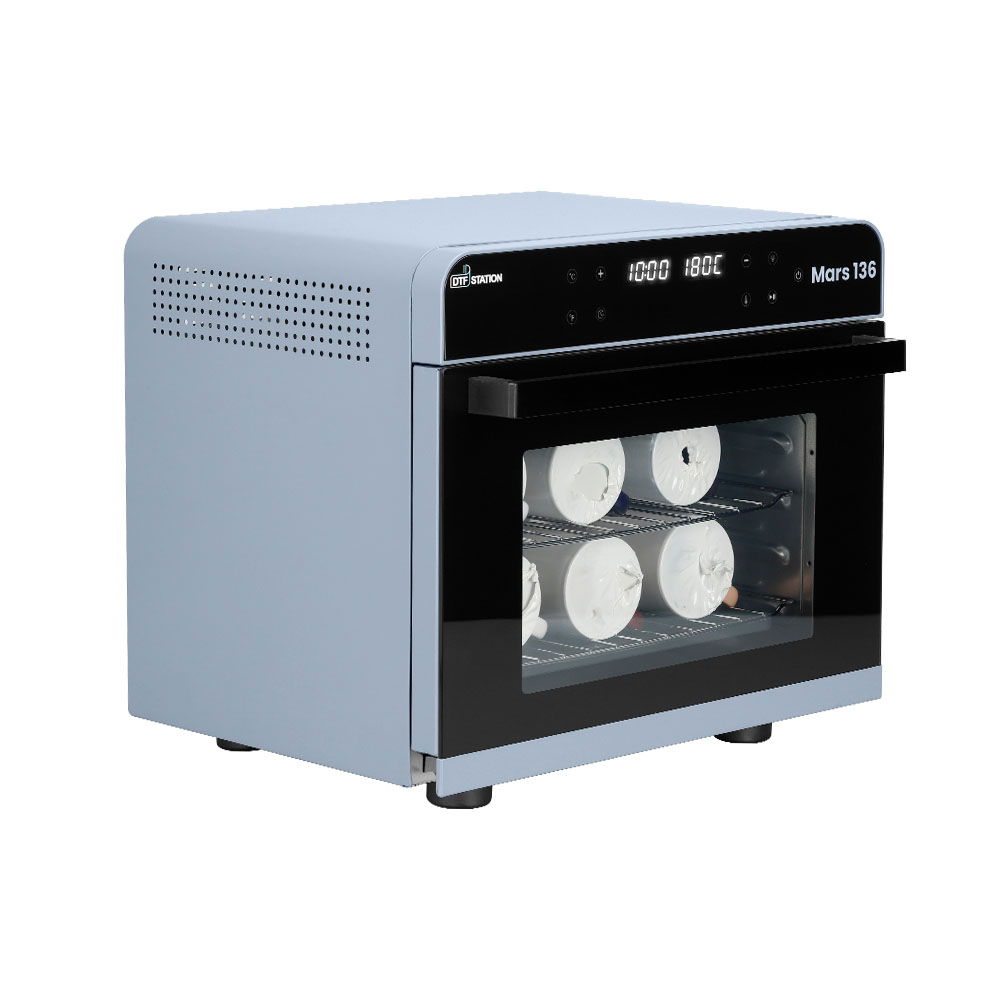

Mars 136 Sublimation Oven

Meet the Mars 136 Sublimation Oven—a sleek, efficient, and easy-to-use solution for your sublimation needs. With a large 36L capacity, it can sublimate up to x12 11oz mugs at once, while six heating tubes and 360°C heated air circulation guarantee even, high-quality transfers. The user-friendly LED touch control, combined with included accessories like shrink wraps, heat-resistant tape, and gloves, makes it simple to operate. Perfect for small to medium-sized businesses looking to sublimate mugs, tumblers, bottles, and more.

SKU: Mars 136 Category: Tag:

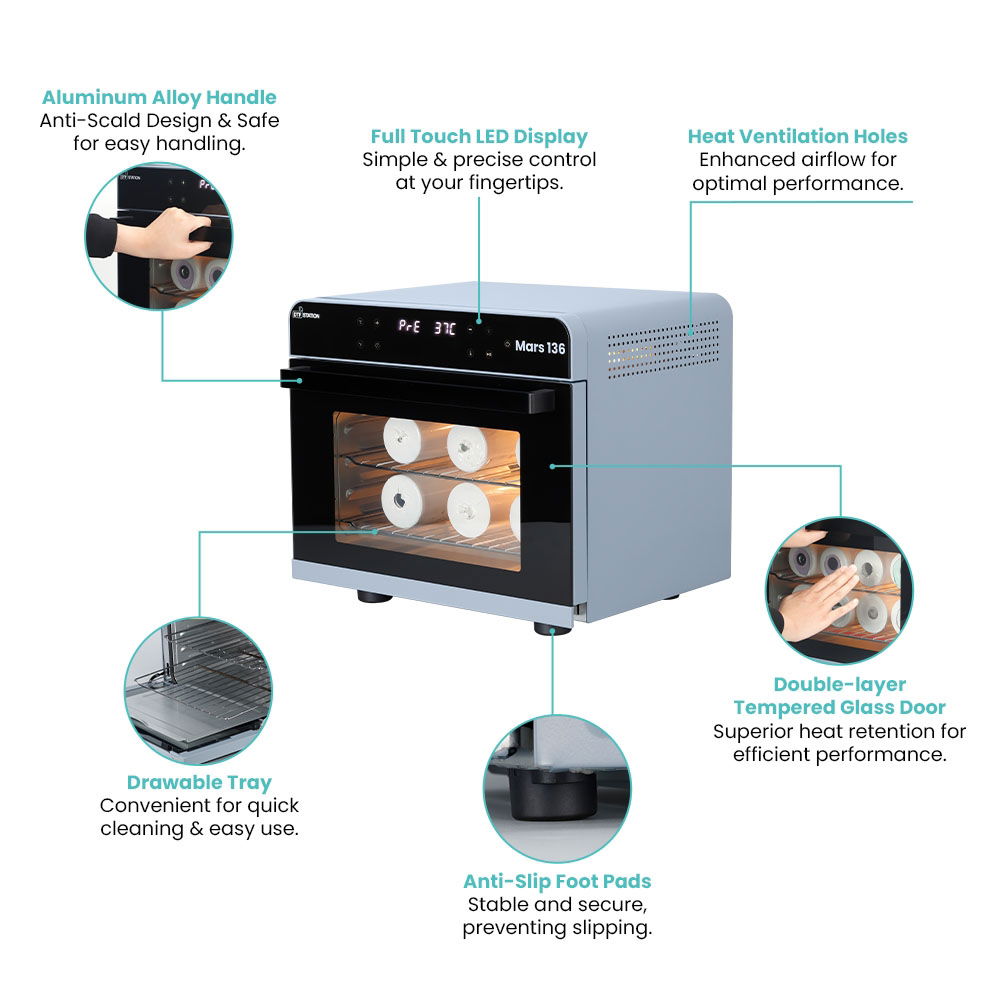

Features

  • 360° Heat Air Circulation – Built-In top fan ensures optimal airflow and uniform heat (temperature variation as low as 7°C) for superior transfer results.
  • 36L Large Capacity – Can press up to x12 11oz mugs simultaneously.
  • Six Heating Tubes – Four top and two bottom tubes for even heat distribution.
  • LED Touch Control – User-friendly display with intuitive operation.
  • Great for Irregular Drinkware – Sublimates irregularly shaped mugs, tumblers, bottles, and more that a mug press can’t handle.

Benefits

  • Increased Productivity – Large capacity allows for multiple items to be sublimated at once, saving time.
  • Superior Transfer Quality – Even heat distribution ensures vibrant, consistent results.
  • Easy Operation – The intuitive LED touch control makes setup and operation simple.
  • Versatility – Ideal for a wide range of products, including irregular shapes like bottles and tumblers.
  • Reliable Support – Backed by a 16-month warranty and lifetime customer support for peace of mind.

Specification

SpecificationDetails
Voltage110~120V (60Hz) / 220~240V (50Hz)
Current16.36A (110V) / 8.18A (220V)
Operation Power1800W
Standby Power Consumption<0.5W or <1.0W (with indicator light)
Temperature Range38-210°C / 100-410°F
Time Range1-60 minutes
Machine Size (L x W x H)486.5 mm x 430.3 mm x 423 mm (19.1” x 16.9” x 16.6”)
Machine Weight11.77 kg (25.95 lbs)
CertificateCE
Operating Temperature-20°C to 80°C
Storage Temperature-25°C to 80°C
Capacity36L
Max Printing Quantity Per Operation6 pcs of 11 oz mug (12 min) / 6 pcs of 20 oz tumbler (12 min)

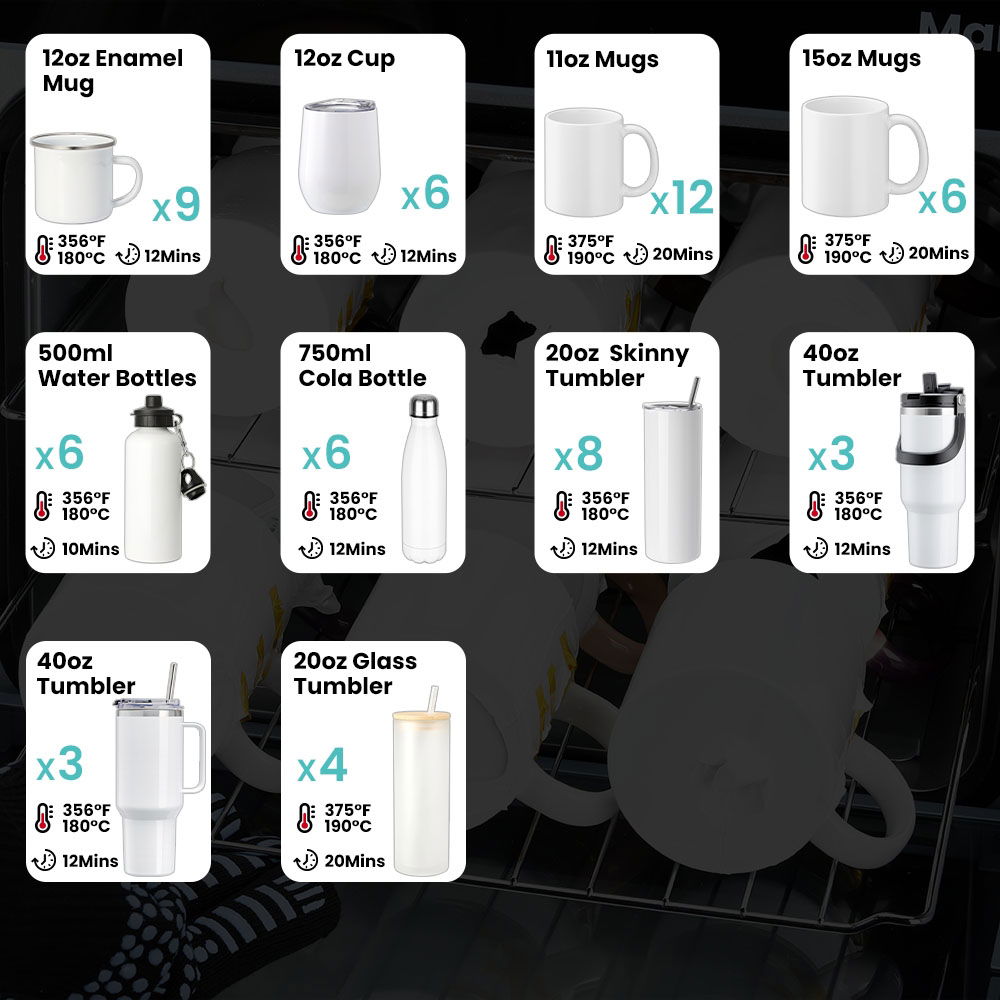

Quick Guide

Size & DesignQty/RunTemperatureTimeShrink Wraps LengthPlacement Guide
Straight 20oz Bottle8356°F / 180°C12mins25cm4 Items Per Layer
2 Layers Max
20oz Glass Tumbler4375°F / 190°C20mins25cm4 Items For One Layer
11oz Mugs12375°F / 190°C20mins14cm (Opening Required for Handle)6 Items Per Layer
2 Layers Max
15oz Mugs6375°F / 190°C20mins16cm (Opening Required for Handle)6 Items For One Layer
40oz Tumbler with Handle3356°F / 180°C12minsTop – 18cm
Bottom – 10cm
3 Items For One Layer
40oz Travel Mug with Metal Handle3356°F / 180°C12minsTop – 18cm (Opening Required for Handle)
Bottom – 10cm
3 Items For One Layer
500ml Water Bottles6356°F / 180°C10mins18cm3 Items Per Layer
2 Layers Max
12oz Enamel Mug9356°F / 180°C12mins12cm9 Items For One Layer
12oz Stemless Cup6356°F / 180°C12mins15cm6 Items For One Layer
750ml Cola Bottle6356°F / 180°C12mins24cm3 Items Per Layer
2 Layers Max
